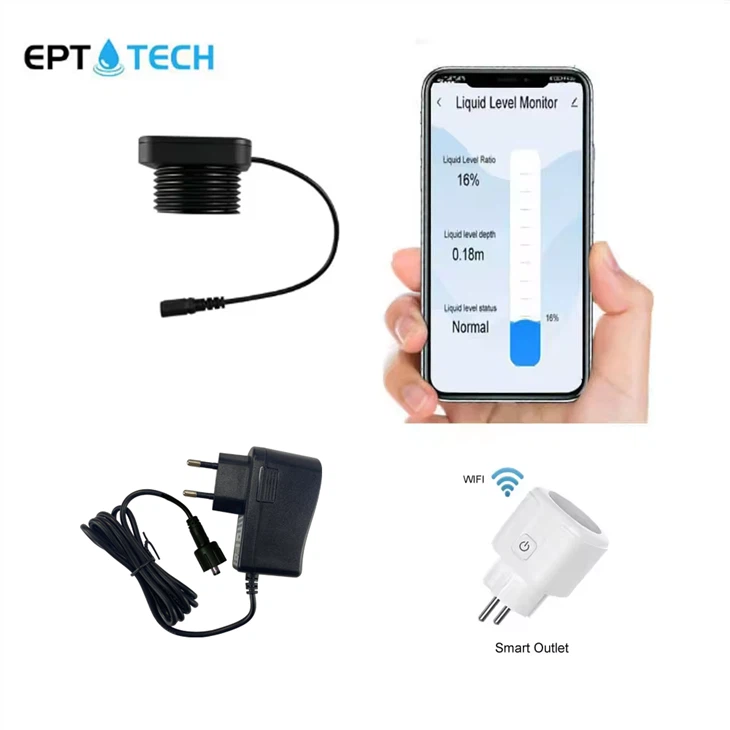

TLC2326WL automatic water tank overflow controller realizes the automatic monitoring of liquid level and equipment control without manual intervention, greatly saving manpower.

Even if you are not on site, you can still check the liquid level status and socket switch status in real time through the App. Manual intervention is possible when necessary.

TLC2326WL water tank overflow controller wireless can set different thresholds and action combinations according to specific needs (for example, only start at low water level, or form a closed loop with dual-condition control of high and low water levels).

Power Supply: DC 5V

Current: Normal State<110mA

Frequency: 40kHz

Operating Temp: -10℃-70℃

Communication: Wi-Fi(2.4GHz)

Measuring Range: 0.1-3 meters

Measurement Tolerance: ±(1%Reading+10mm)

Material: Nylon

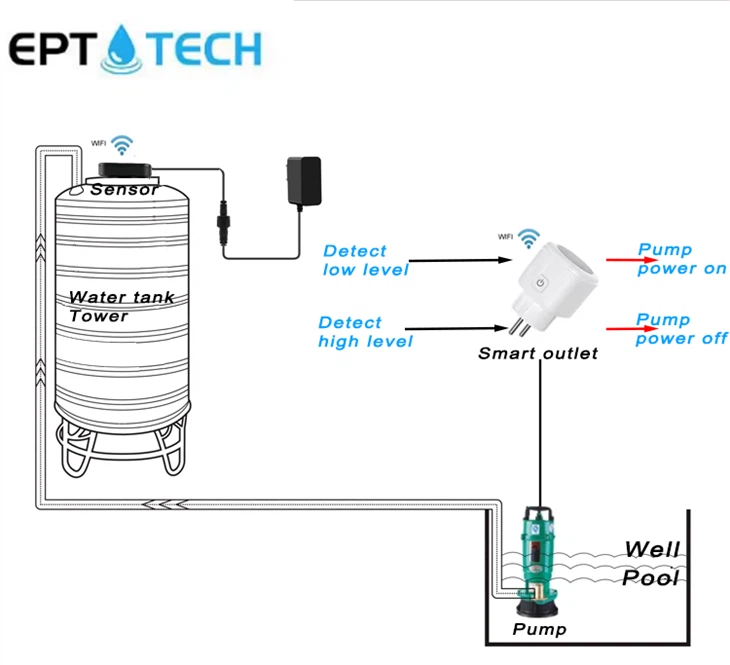

Smart water tank controller connected to 2.4Ghz Wi-Fi, set the upper and lower limits of the liquid level in Tuya or smart life app, add a smart socket, and specify the conditions for the automatic start and stop of the water pump.

For example, when the water level is below 10%, the motor water pump power is automatically turned on to start pumping; on the contrary, when the liquid level is above 90%, the pump power is automatically cut off to prevent water overflow.

TLC2326WL water level sensor iot continuously or regularly measures the liquid level height in the water tank/container and sends the data to the Tuya IoT cloud platform via Wi-Fi.

Liquid level ratio: 0%-100%;

Liquid real-time depth: Max 3-meter;

Liquid levelstate: low/normal/high;

Liquid level change history;

Liquid level alarm history;

Free high and low level pop-up alarm notifications.

TLC2326WL remote water tank level sensor is widely used in scenarios where it is necessary to prevent dry burning, overflow and achieve automatic liquid replenishment

Household/small water systems: Automatic water replenishment for water towers/storage tanks, automatic water change for fish tanks/aquariums, and automatic irrigation for gardens.

Agriculture/Breeding: Automatic water replenishment for livestock drinking troughs, management of greenhouse irrigation water tanks.

Industrial/Commercial: Liquid level control of small storage tanks, circulation and replenishment of equipment coolant.
