LC2326WF-S-WL water tank level monitor and overflow prevention is is based on Tuya, wireless remote control of your water management process, say goodbye to manual water monitoring.
When the liquid level reaches the set threshold, the power-on state of the water pump is changed through the Tuya smart socket, thus realizing automatic operation.

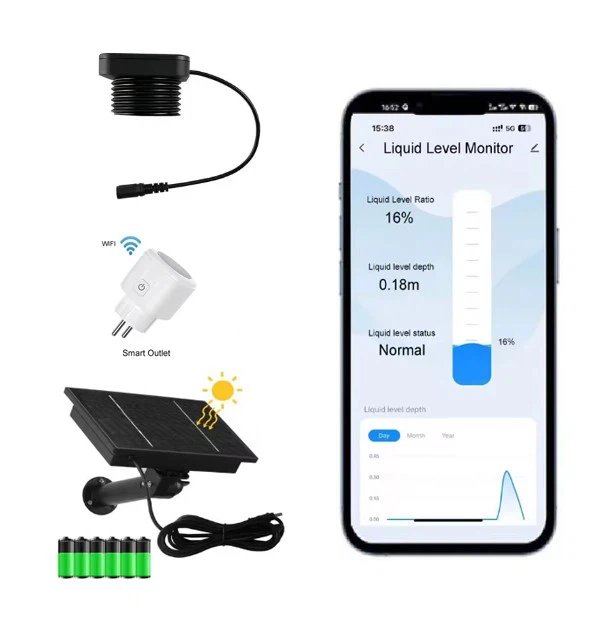

The ultrasonic liquid level sensor is powered by a solar panel. It is placed on the top of the water tank to collect internal liquid level data and is equipped with a WiFi module to communicate with the mobile phone.

Power Supply: DC 5V

Current: Normal State<110mA

Frequency: 40kHz

Operating Temp: -10℃-70℃

Communication: Wi-Fi(2.4GHz)

Measuring Range: 0.1-3 meters

Measurement Tolerance: ±(1%Reading+10mm)

Material: Nylon

Solar panel with 6 built-in 18650 batteries, When the sleep mode is turned on in the App, the panel can enter low power consumption mode.

Solar power: 4W

Charging Voltage: Max 5V

Power output: 5V Max 2000Ma

Fully Charged Time: 16-18hours

Certification: CE, ROHS, FC

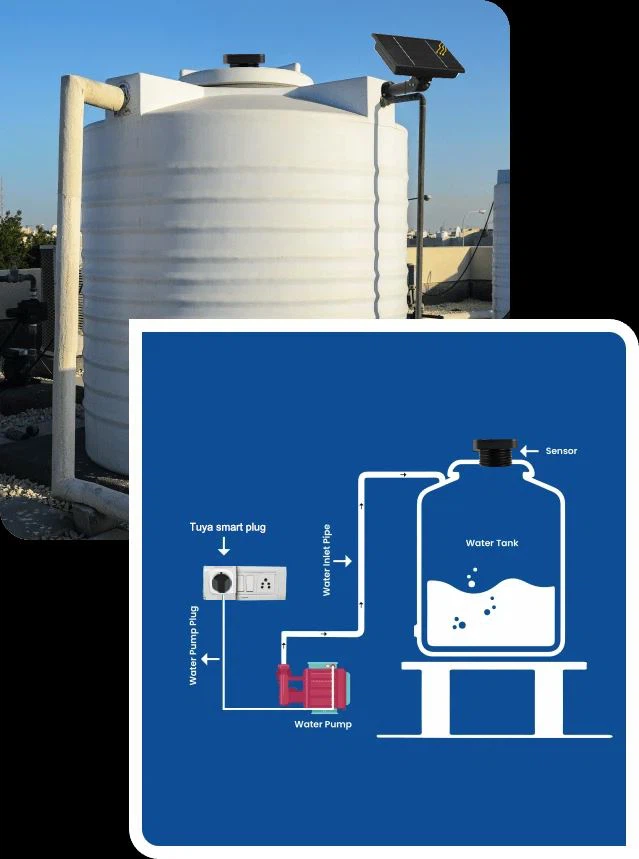

How to make automatic water tank filling system?

The ultrasonic sensor and smart outlet are connected to 2.4Ghz Wi-Fi, set the upper and lower limits of the liquid level in Tuya or smart life app, add a smart socket, and specify the conditions for the automatic start and stop of the water pump.

For example, when the water level is below 10%, the motor water pump power is automatically turned on to start pumping; on the contrary, when the liquid level is above 90%, the pump power is automatically cut off to prevent water overflow.

Liquid level ratio: 0%-100%;

Liquid real-time depth: Max 3-meter;

Liquid levelstate: low/normal/high;

Liquid level change history;

Liquid level alarm history;

Free high and low level pop-up alarm notifications.
