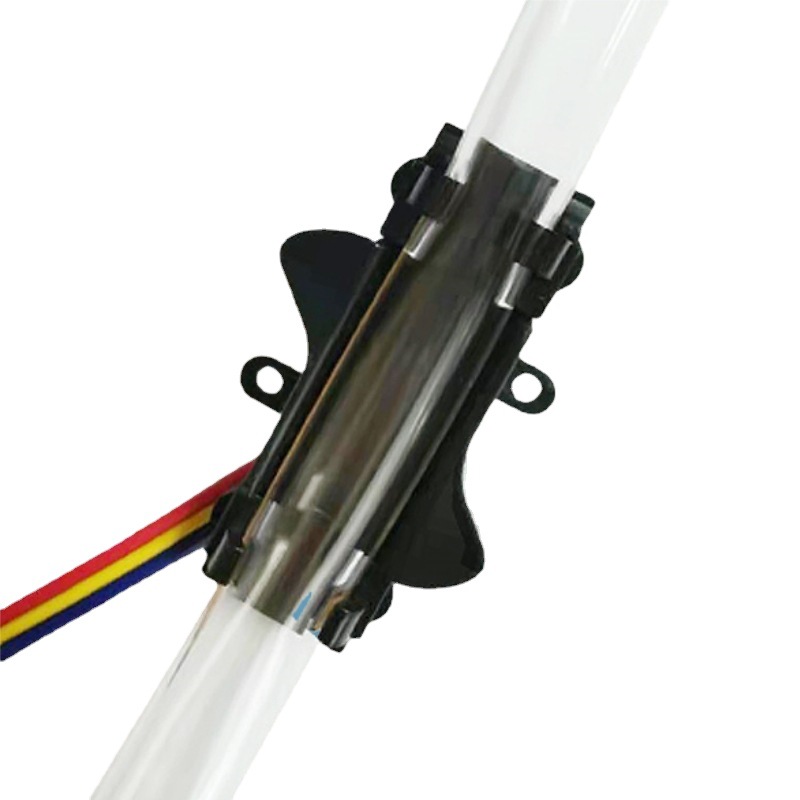

Intelligent non-contact tube level sensor PTFS-IR2107D (liquid level detector) adopts advanced signal processing technology and high-speed signal processing chip, which breaks through the influence of container wall thickness and realizes true non-contact measurement of liquid level in sealed container. The tube level sensor PTFS-IR2107D is installed on the water pipe on the wall of the measuring container. The suitable diameter of the water pipe is 8~10mm. The non-metallic container does not need to be drilled. It is easy to install and suitable for production. It can be used for various toxic, strong acid, strong alkali and various liquid level measurement in high-pressure sealed containers or tanks. The product has a wide range of applications, and there are no special requirements for liquid media and container materials.

Features

1: PTFS-IR2107D is suitable for 8~10mm water pipes. It does not need to be in contact with liquids and will not be corroded by strong acids, strong alkalis and other corrosive liquids. Will not be affected by scaling or other impurities.

2: Intelligent liquid level adjustment and liquid level storage function, liquid level status display mode, can realize multi-point series connection,

3: It realizes the non-contact detection of the liquid level in the closed container.

4: Non-metallic containers do not need to open the holes.

5: Can detect the level of various toxic substances, strong acids, strong alkalis and various liquids in high-pressure airtight containers
